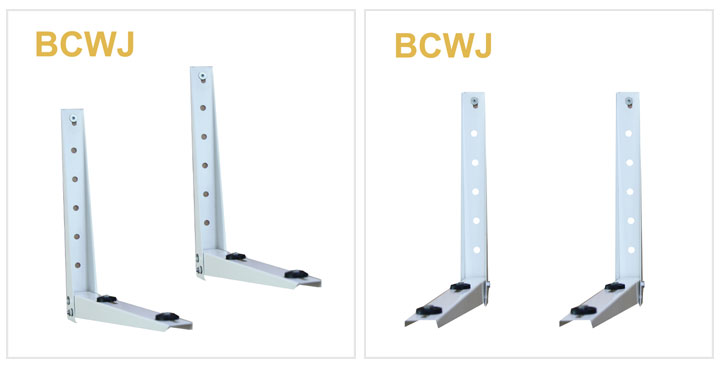

High Practicality: The dimensions of mini split bracket are 31.5" x 14.96" x 21.65" (cross bar x vertical arm x horizontal arm). Made of heavy duty galvanized steel, our mini split wall mounting bracket can hold up to 400 LBS. Compatible with most brand of mini split air conditioners, heat pumps, adjustable to fit 7,000 - 36,000 BTU mini split systems

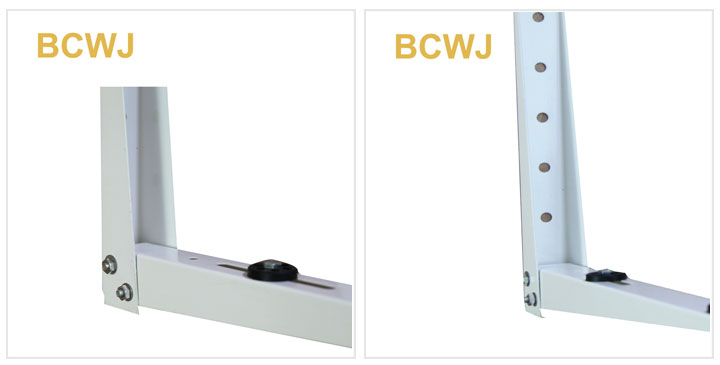

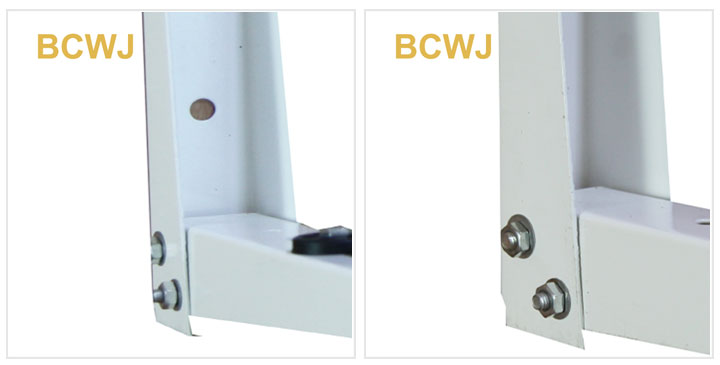

Smart Design: Spirit level on the cross bar assures your mini split outdoor units install horizontally and stay level. Pre-assembled angle regulators on the vertical arms help you flexibly adjust the distance between the bracket and the wall. The rubber shock pads, which will be installed under the support feet of the outdoor mini split units by bolts, can improve the stability of units, as well as can effectively minimize noise

Durability & Security: The surface of the mini split mounting bracket is coated with epoxy powder, provides excellent protection against harsh weather, enhances durability of the bracket. Double-groove design can hook the L-shape bracket without falling off, provide security. Five wall anchors provided, form five-point positioning installation, further improve stability and safety. And wide triangle stiffener design on the horizontal arms ensures the structure for long term stability

Installation Guideline: Comes with all installation hardware: one cross bar, two foldable L-shaped brackets, five wall anchors, four short bolts & nuts, four rubber pads & bolts and one Installation instruction. Flexibly adjust the width between two L-shape brackets to accommodate the installation of mini split compressors

Application: Our mini split wall bracket can be used in any place, and used on most walls, such as cement wall, ceramic tile wall, brick wall, solid wall, and etc. Bracket for mini split can be put in any height. It is designed to keep your outdoor units elevated, protect from debris, dirt, snow, and grass-clippings. This helps keep the air conditioner clean, ensures reliable operation in any environment, and extends its service life
